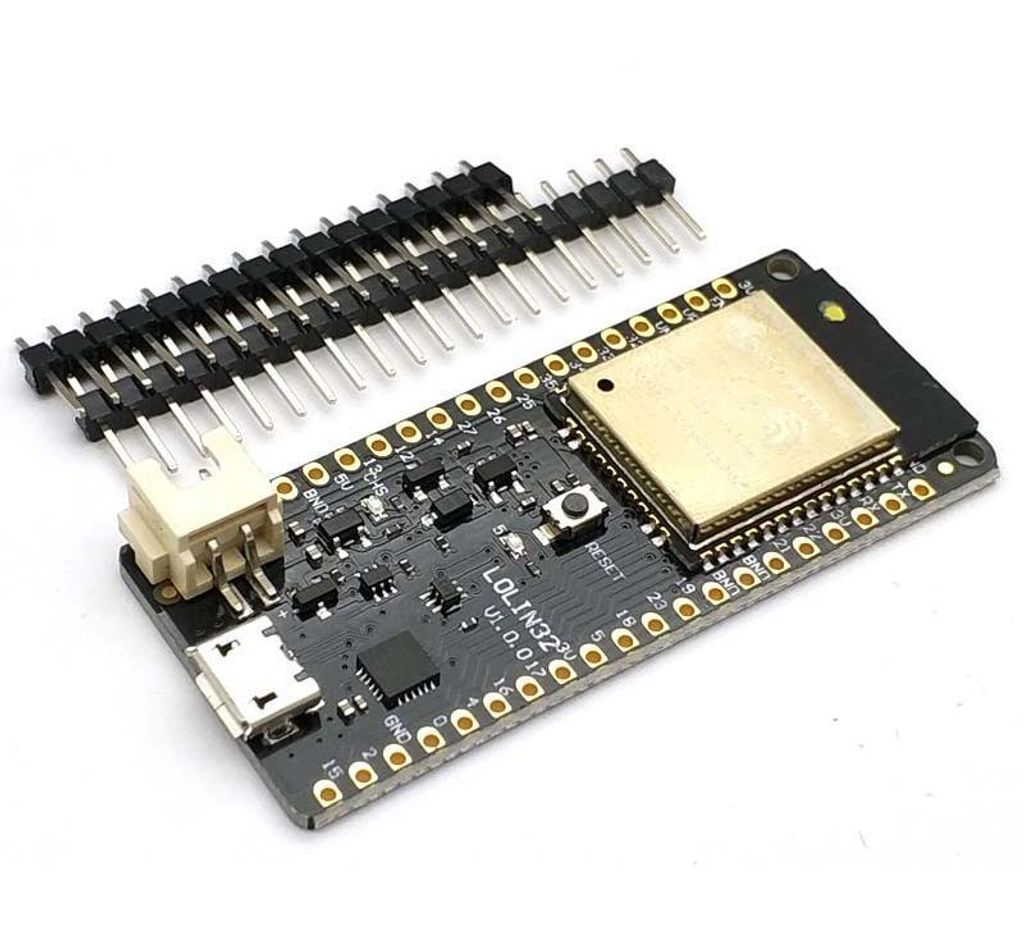

Lolin32 ESP32 開發板 可外接鋰電池

體積小、適合插麵包板

內建藍牙,WiFi

4 MB閃存

鋰電池插座，500mA大充電電流

Battery Connector: PH-2 2.0mm

• ESP32 Module: ESP-WROOM-32 from Espressif.
  • 240MHz dual core microprocessor equipped with
  • 4MB SPI flash memory. Support up to 16MB of flash memory
• Connectivity
  • WiFi 802.11 b / g / n.
    • Security WEP, WPA / WPA2 PSK / Enterprise.
    • Integrated cryptographic chip supporting AES / SHA2 / Elliptical Curve Cryptography / RSA-4096 algorithms
    • Maximum power for data transfer: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
    • Sensitivity max. reception: -97 dBm
  • Bluetooth 4.0 LE
• 32 Inputs / Outputs
  • 26x Digital I / O (3.3V). All outputs can be PWM
  • 18x analog inputs
  • 3x UART
  • 3x SPI
  • 2x I2S
  • 2x DAC
  • 2x I2C
• Sleep Mode Consumption: 5 μA
• Integrated sensors
  • Hall Effect
  • 10x inputs for capacitive touch interface

完整Arduino套件特價供
