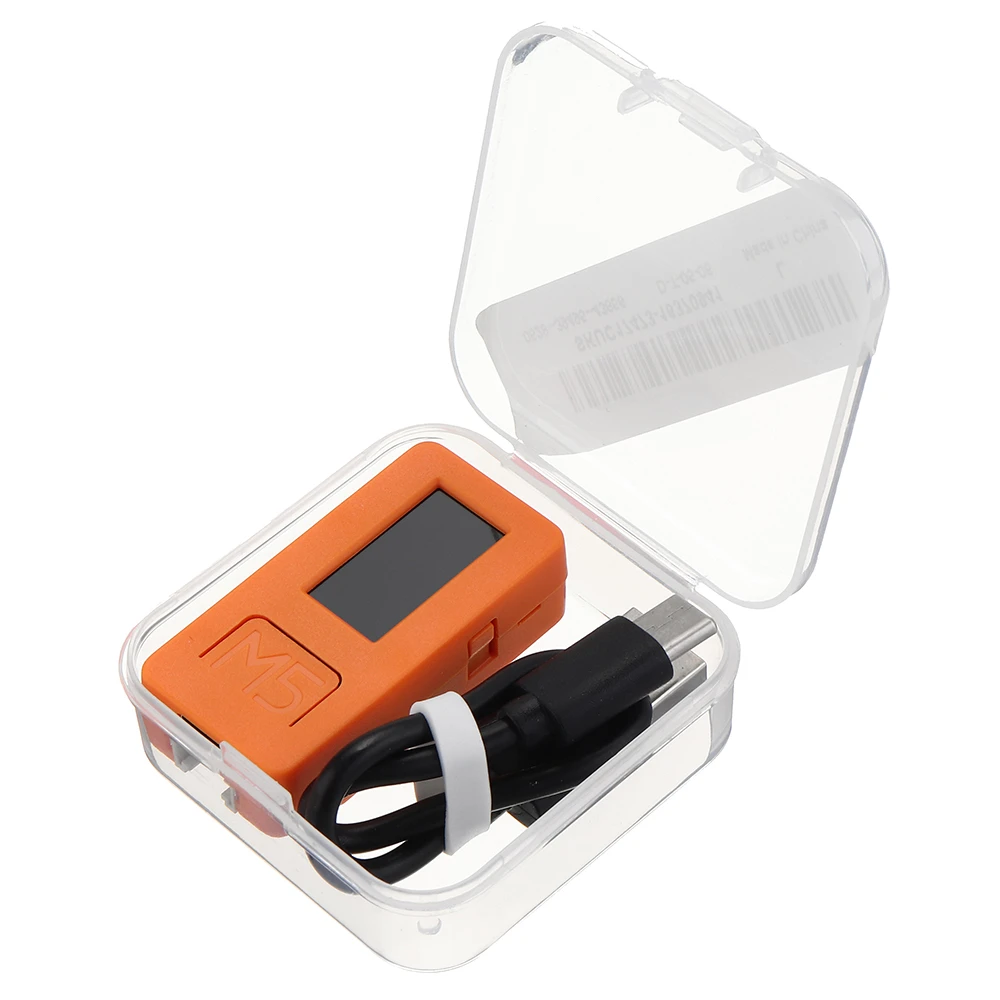

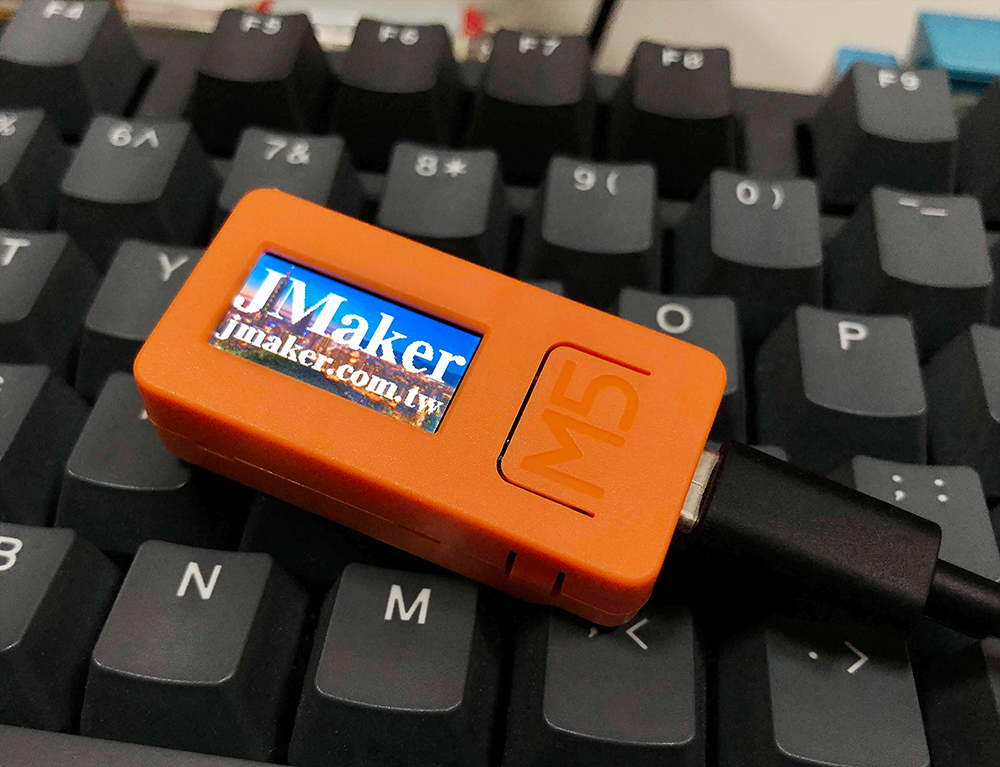

M5StickC,內建TFT LCD的ESP32迷你開發板

NT$ 540.00
- +
icon-cart Add to Cart
首頁

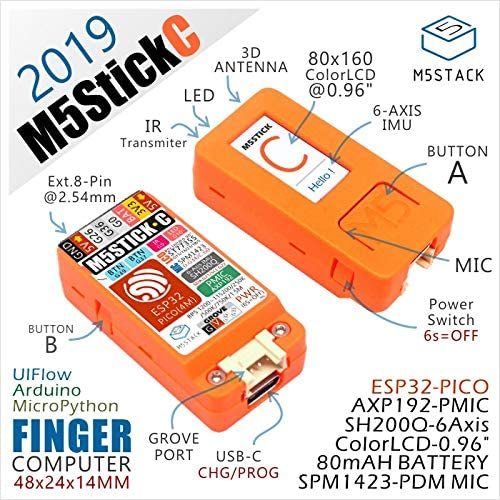

M5StickC是M5Stack系列開發板其中一款,特色是超迷你的,但一樣是用ESP32當核心,還有搭配0.96吋全彩的TFT LCD,內建小電池、6軸加速度感測器、麥克風、按鍵、LED,還有一組Grove的接頭,可以接I2C的設備。

傑森獨家測試文:

https://blog.jmaker.com.tw/m5stickc-quickstart/

官方規格說明:

  • MCU: ESP32 Tensilica LX6 Dual-Core 240 MHz
  • SRAM: 520 KB
  • 4 MByte Flash
  • 6-Axis IMU: MPU6886
  • Wi-fi: 802.11 b/g/n HT40
  • Bluetooth
  • Input voltage: 5V / 500mA
  • 1x I2C/ Uart/ I/O (Grove compatible)
  • 1x USB type C
  • 1x 8 Pin port
  • Display: colored IPS LCD 0.96" 80 x 160 px – ST7735S
  • Microphone: SPM1423
  • Battery: 95 mAh / 3.7 V - in Bottom module
  • Operating temperature: 0 °C to 40 °C
  • Casing: plastic - Orange
  • Three buttons: Power / Reset / Function button
  • Dimensions: 48.2mm x 25.5mm x 13.7mm
  • Weight: 15.1 g
